High Speed Cameras & Motion Analysis >> Photron

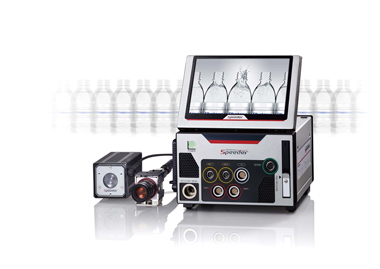

PhotoCam Speeder V2

I am interested in this product

Your Name (required)

Your Email (required)

Contact Number

Product Name

Close Form

I am interested in this product

Your Name (required)

Your Email (required)

Contact Number

Product Name

Close Form

Downloads

Detailed Specs

2,000 fps @ 512 x 512 pixel resolution
4,000 fps @ 512 x 256 pixel resolution
8,000 fps @ 512 x 128 pixel resolution
10,000 fps top speed

Two compact and lightweight sealed camera heads for C-mount optics

Light Sensitivity: ISO 3,200 Monochrome , ISO 1,800 for Color.

Remote camera heads record to central processor up to 7 meters (23′) distant. Systems can write to onboard RAM (Speed Priority), or SSD for up to 85 minutes at full resolution at 2,000 fps (Compression mode)
LCD control screen makes recording, playback and analysis intuitive and easy

Compact, low temperature LED lighting makes it easy to ensure you see and record the specific area of interest

Applications : Biomechanics, Life sciences, Digital Image Correlation, Defense and aerospace research, Fluid dynamics, Material science
