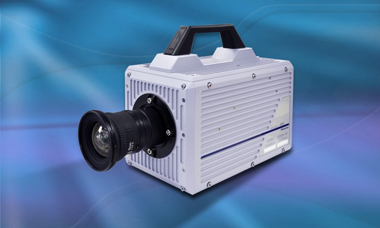

FASTCAM SA6

I am interested in this product

    Your Name (required)

    Your Email (required)

    Contact Number

    Product Name

    Close Form

    The FASTCAM SA6 system provides 1920×1440 pixel image resolution at all frame rates up to 1,125fps, 1920×1080 full HD resolution at frame rates up to 1,500fps and recording rates up to 75,000fps at reduced resolution.

    I am interested in this product

      Your Name (required)

      Your Email (required)

      Contact Number

      Product Name

      Close Form

      Downloads

      Detailed Specs

      1,125 fps @ 1,920×1,440 pixels
      1,500 fps @ 1920 x 1080 pixels
      2,000 fps @ 1280 x 1024 pixels
      5,000 fps @ 768 x 512 pixels
      25,000 fps @ 256 x 128 pixels
      75,000 @ 256×32 pixels

      Global electronic shutter from 16.7ms to 2.76 μs independen of frame rate

      Dual Speed Recording: Enables the recording speed to be changed up or down by a factor of 2, 4 or 8 during a recording

      Memory Options 8GB, 16GB, 32GB or 64GB.

      Recording modes: Start, End, Center, Manual, Random, Random Reset, Random Center, Random Manual and Dual Speed Recording

      Through Optional keypad with integrated viewfinder and Gigabit Ethernet or RS-422

      National Instruments DAQ support

      Photron FASTCAM Viewer: Simple and easy to control software for SA6 camera

      Photron FASTCAM Analysis (PFA): Entry Level Analysis software for measurements of Displacement, Velocity & Acceleration.

      Applications: Automotive safety testing, Fluid dynamics (PIV), Solid Mechanics (DIC), Defense and aerospace research etc
