High Speed Cameras & Motion Analysis >> Photron

FASTCAM SA-X2

I am interested in this product

    Your Name (required)

    Your Email (required)

    Contact Number

    Product Name

    Close Form

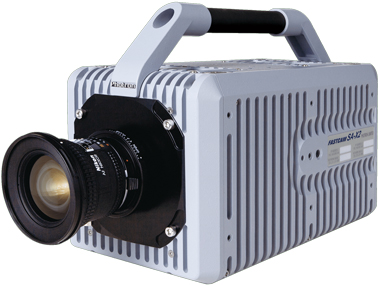

    The Photron FASTCAM SA-X2 is a balance of high frame rate, image resolution, dynamic range and light sensitivity featuring up to 12,500 frames per second at full resolution ( 1024 x 1024 pixels) and 480,000 frames per second at reduced resolutions.

    I am interested in this product

      Your Name (required)

      Your Email (required)

      Contact Number

      Product Name

      Close Form

      Downloads

      Detailed Specs

      12,500 fps @ 1,024×1,024 pixels
      13,500 fps @ 1024 x 1000 pixels
      40,000 fps @ 640 x 488 pixels
      100,000 fps @ 384 x 264 pixels
      200,000 fps @ 256 x 152 pixels
      480,000 fps @ 384 x 24 pixels

      Global electronic shutter from 1ms to 1 µs independent of frame rate (293ns shutter available subject to export license control)

      Memory Options 8GB, 16GB, 32GB or 64GB

      Light Sensitivity: ISO 25,000 Monochrome, ISO 10,000 Color

      Trigger Modes: Start, End, Center, Manual, Random, Random Reset, Random Center, Random Manual, Image Trigger

      12 bit pixel depth monochrome, 36 bit for color

      Remote computer control via high-speed dual port Gigabit Ethernet or optional local control via handheld keypad with LCD monitort

      Two SD card slots allow fast image transfer without a PC connection

      National Instruments DAQ support

      Photron FASTCAM Viewer: Simple and easy to control software for SA-X2 camera

      Photron FASTCAM Analysis (PFA): Entry Level Analysis software for measurements of Displacement, Velocity & Acceleration.

      Applications: Fluid dynamics, Particle Image Velocimetry, Combustion Research, Material Science, Ballistic Imaging, Defence & Aerospace Research, Shock Waves and Detonation
