    Photron-FASTCAM-Multi

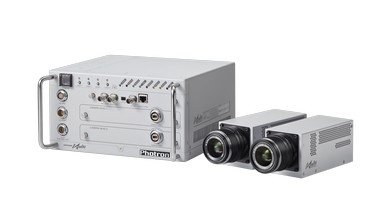

    The Photron FASTCAM Multi is a unique high speed camera featuring one or two heads tethered to a remote processor. The camera allows to capture up to 6,000 frames per secod at 1 Megapixel resolutions and are best suited for image capture at confined areas

    I am interested in this product

      Your Name (required)

      Your Email (required)

      Contact Number

      Product Name

      Close Form

      Downloads

      Detailed Specs

      4,800 fps @ 1,280 x 1,024 pixels
      6,250 fps @ 1280 x 800 pixels
      10,000 fps @ 896 x 488 pixels
      16,000 fps @ 1,280 x 24 pixels
      750,000 fps @ 640 x 8 pixels

      Global electronic shutter from 16.6ms to 1us

      Memory Options 8GB, 16GB or 32GB

      Compactness 69mmx70mmx151.4mm (0.98Kg) and processor 7.8Kgs

      One or two compact and lightweight camera heads

      Light Sensitivity: ISO 10000 Monochrome, ISO 5000 Color

      Trigger Modes: Start, Center, End, Manual, Random, Random Reset, Random Center, Random Manual

      12 bit pixel depth monochrome, 36 bit for color

      Camera Control Interface: High Speed Gigabit Ethernet

      Applications: Fluid dynamics, Life Sciences, Biomechanics, Defence & Aerospace Research, DIC etc.
