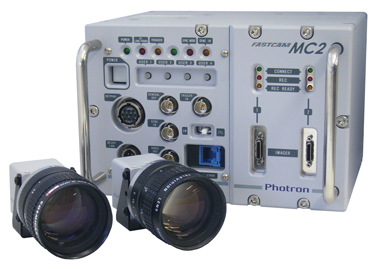

A robust system with one or two remote camera heads that are small and light weight enabling it to be positioned in inaccessible and space limited environments.

Small and lightweight camera head types:
(i) Cube Cam: 35mm (1.38”) x 35mm (1.38”) x 33.3 mm (1.31”)
(ii) Pencil Cam: 23mm (0.91“) x 23.2mm (0.91“) x 77.1mm (3.04“)

Three model options (monochrome or color):
(i) Model 500: 512 x 512 pixel resolution at frame rates up to 500 fps
(ii) Model 2K: 512 x 512 pixel resolution at frame rates up to 2,000 fps
(iii) Model 10K: 512 x 512 pixel resolution at frame rates up to 2,000 fps and frame rates up to 10,000 fps with reduced image resolution

Global electronic shutter from 20ms to 6 µs

Memory Options 1GB, 2GB or 4GB.

Recording modes: Start, End, Center, Manual, Random

Through a Gigabit Ethernet PC interface and optional RS-422 keypad

Photron FASTCAM Viewer: Simple and easy to control software for MC2 camera.

High speed video can be synchronized with external analog data from load cells or accelerometers with optional DAQ

Applications: High speed video system developed specifically for production line and automation fault finding
